Asphalt Material Production Equipment

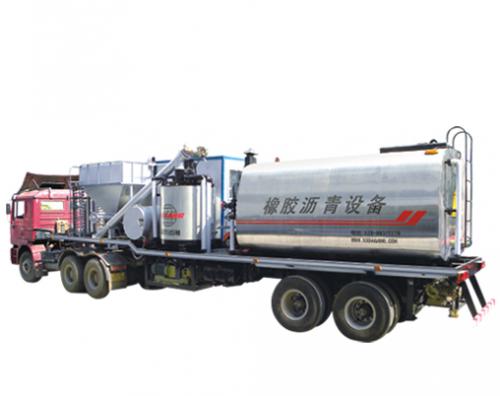

Continuous Rubber Modified Asphalt Equipment
This plant is specially designed to produce crumb rubber modified asphalt (asphalt rubber-AR). It is typically composed of two main components: a mobile mixing unit that initially mixes ground rubber with hot asphalt, and a mobile reaction tank that both agitates and stores the mixture. The mixing unit is mainly composed of asphalt heating tank, mixing tank with high-shear mixer, crumb rubber hopper with rotary feeder and load cells, asphalt pumping and metering system, AR pumping system, additives feeding and metering system, Burner and hot oil heating system, pneumatic system, control system, generators, etc.The reaction tank is mainly composed of four vertical agitators, Burner and hot oil heating system, AR pumping system, control box, etc.

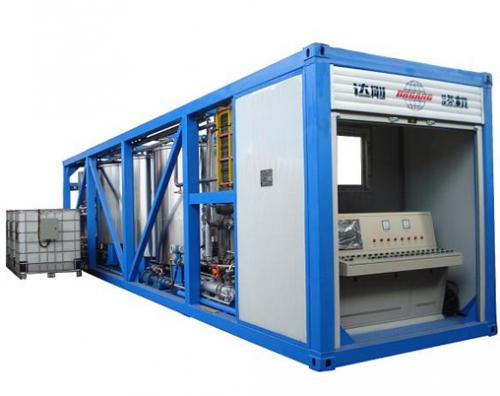

GLR6B Emulsified Asphalt Equipment
This series of plants were specially designed to produce asphalt emulsion and modified asphalt emulsion. There are three models for choice: GLR6A, GLR6B and GLR10. GLR6A and GLR6B have the similar structure and introduce semi-automatic and manual control system, can continuously produce. They are mainly composed of one asphalt heating tank, two emulsion (soap) pre-mixing tanks with agitators, colloid mill, asphalt pumps, emulsion pump, control cabinet and pedestal. GLR10 introduces automatic control system and can continuously produce. It is mainly composed of water heating tank, one emulsion (soap) pre-mixing tank, two emulsion tanks, colloid mill, four Intermediate Bulk Containers for emulsifier, modifier, other additives, asphalt pumps, emulsion pump control cabinet, etc..
Multifunction Asphalt Modified Equipment
This plant is specially designed to produce polymer modified asphalt (such as SBS, EVA, PE) and crumb rubber modified asphalt (asphalt rubber). The production process is introduced automatic control system. It is composed of asphalt heating tank, main body, rotary feeder, hot oil heater and control room. The main body is mainly consisted of pre-mixing tank, reaction tank (two), colloid mill, electronic weighing system, etc.
DT Series Drummed Asphalt Melter
This equipment was specially designed to decant and heat up drummed asphalt. It is mainly composed of Main Body, Hot Oil Heater, Asphalt Pump Assembly and Filtering System. This equipment was firstly developed and manufactured by our company in the world in 1978 and the patent no. is 95245105.0.
